Voigtländer 10mm f/5.6 Hyper and 12mm f/5.6 Ultra-Wide-Heliar III lenses specifications

Voigtländer published additional information on the two new M-mount (VM) lenses that were announced a week ago:

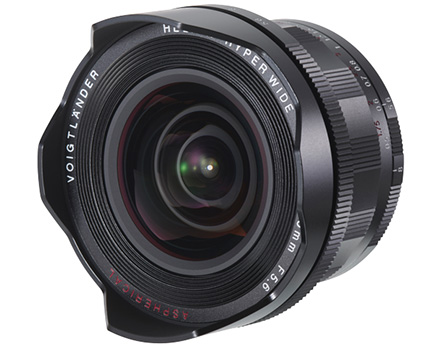

Voigtländer VM 10mm  f/5.6 Hyper Wide Heliar aspherical lens (new model)

_Voigtländer-VM-10mm--f_5.6-Hyper-Wide-Heliar-aspherical-lens
_Voigtländer-VM-10mm--f_5.6-Hyper-Wide-Heliar-aspherical-lens-2

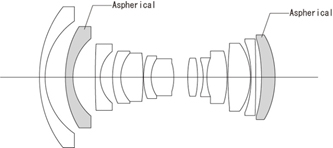

Voigtländer VM 10mm f:5.6 Hyper Wide Heliar aspherical lens design
Technical specifications:

Focal Length 10 mm
Aperture Ratio 1:5,6
Minimum Aperture F 22
Klick Stop 1/3
Lens Construction 13 elements in 10 groups
Angle of View 130°
Aperture Blades 10
Minimum Focus 0,5 m
Maximum Diameter 67,8 mm
Length 58,7 mm
Mount M-bayonet (VM)
Weight 312 g
Filter Size n/a
Color black
Others Lens hood (non-detachable),Pressure fit cap
Optional ---

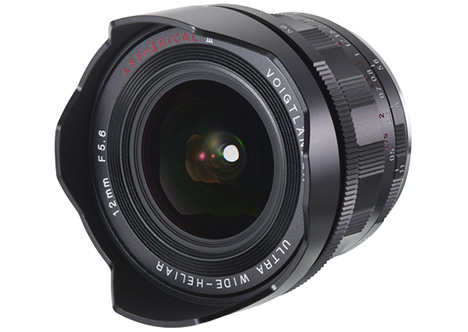

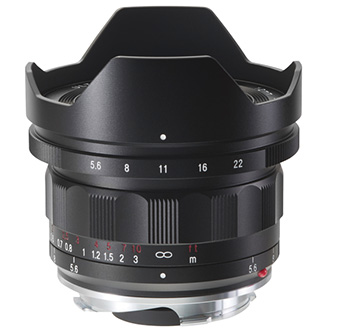

Voigtländer VM 12mm f/5.6 Ultra Wide Heliar aspherical III lens (replacement for the previous model)

Voigtländer-VM-12mm-f5.6-Ultra-Wide-Heliar-aspherical-III-lens
Voigtländer-VM-12mm-f5.6-Ultra-Wide-Heliar-aspherical-III-lens-2

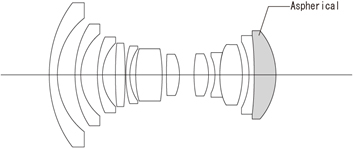

Voigtländer VM 12mm f:5.6 Ultra Wide Heliar aspherical III lens design
Technical specifications:

Focal Length 12 mm
Aperture Ratio 1:5,6
Minimum Aperture F 22
Klick Stop 1/3
Lens Construction 12 elements in 10 groups
Angle of View 121°
Aperture Blades 10
Minimum Focus 0,5 m
Maximum Diameter 64,8 mm
Length 59,2 mm
Mount M-bayonet (VM)
Weight tbd
Filter Size n/a
Color black
Others Lens hood (non-detachable), Pressure fit cap, Rangefinder coupling from 0.7 m to infinity

Check pricing and availability at B&H (not available at the time of this post).
