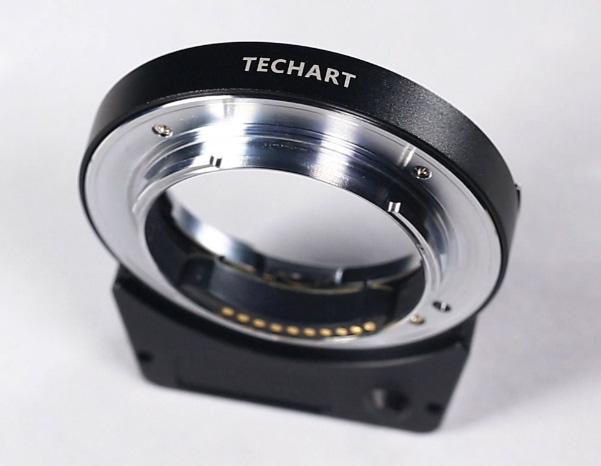

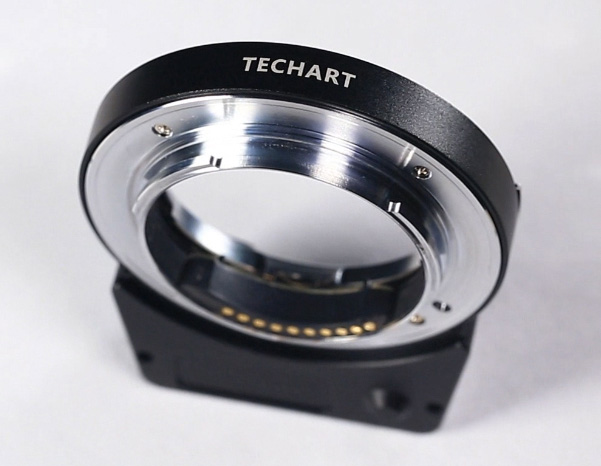

Techart Pro Leica M to Sony E AF lens adapter

Techart-Pro-Leica-M-to-Sony-E-AF-lens-adapter
Techart-Pro-Leica-M-to-Sony-E-autofocus-lens-adapter
TechartPro published additional information on their new Leica M to Sony E AF lens adapter (the full press release can be found here):

Features:

  • Turn your Manual Focus Leica M-mount Lens into Auto Focus
  • Fast & Precise Focusing for Snapshot / Motion photography
  • Support AF-S & AF-C mode
  • Further adapting other lenses with other bayonet mounts
  • Improve Close Focus Ability
  • Super Light and Compact
  • Compatible with Sony A7(II) & Sony A7R(II)
  • Shipping starts in March 2016

Techart PRO Leica M to Sony E Autofocus Adapter

Technical specs:

Objective lens mount Leica M mount
Camera mount Sony E
Compatible cameras Sony A7 (II) , Sony A7R (II)
Maximum bayonet extension 4.5mm
Supported Focusing Mode AF-S / AF-C
Aperture Control Manual
Maximum weight supported 700g(* Handheld support recommended for heavy lens)
Lens data record in EXIF 10 sets
After-shoot Parking 2.5mm / 4.5mm
Wireless control Bluetooth via Android/iPhone app
Weight 133g
Dimensions 80 * 20 mm

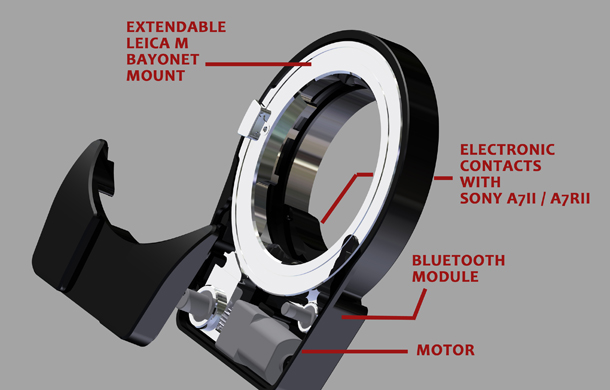

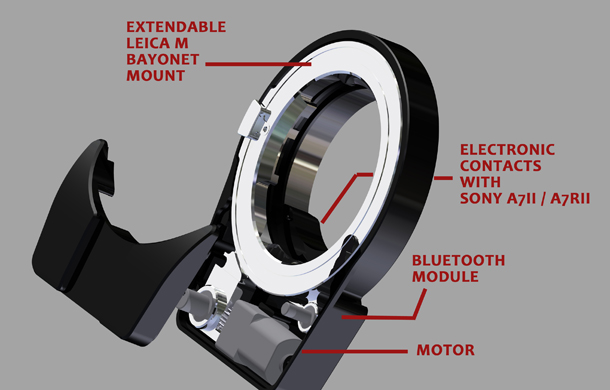

Breakdown of the Techart PRO Leica M to Sony E AF adapter

“Techart PRO adapter is basically a lens adapter with a motor and a printed circuit board, allowing the camera to measure the focus and communicate with the motor. And the motor will move the lens closer or further away from the camera sensor to reach the focal point. The principle is similar to the Contax AX camera that the flange distance is adjusted to reach the focus. The maximum z-shift is 4.5mm which is sufficient to cover the focusing distance for most of the lenses. And the optical performance will NOT be affected for unit focusing lenses.”
